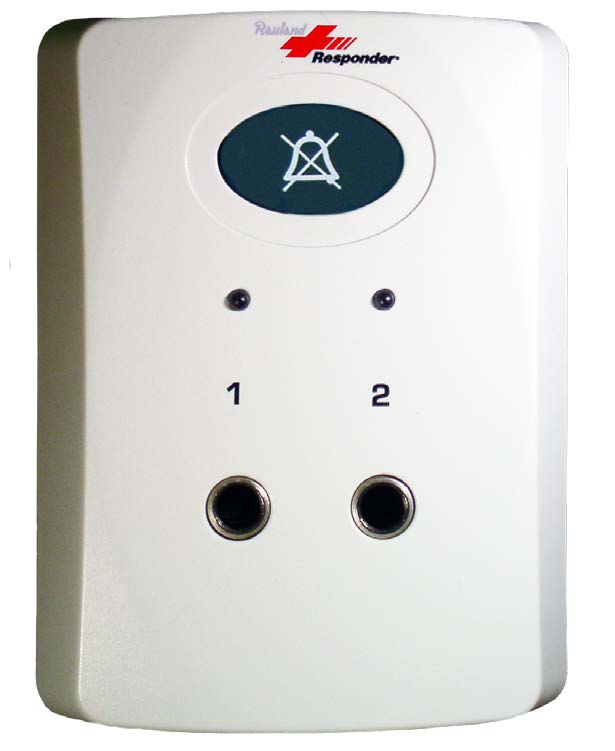

Rauland Responder 5 354100 Input Module - 2 point - Pre-Owned

Rauland Responder 5 354100 Input Module - 2 point - Pre-Owned

View Other Rauland Nurse Call REPLACEMENT Parts

View Rauland Nurse Call REPAIR Options

The Responder Input Module - 2 point is designed to interface external latching alarm dry contacts to annunciate through the Responder 5 system. One Input Module - 2 point would be associated with a single fire alarm or door alarm (Auxiliary) contact. The contact can be supervised and annunciated upon failure at the nurse console. The compact size of the Input Module permits its easy mounting in a junction box or corridor light back box. The module is enclosed in a plastic clam shell with (2) two (2) two conductor plug-on insulation displacement connectors.

Features

• Interfaces fire alarm detector or door alarm to provide
• redundant annunciation through Nurse Console(s)
• Electrical isolation from the contact
• Plug-in connectors for easy service
• Full supervision of the input point and failure annunciation of the station location

Specifications

• Power Required: 14.82mA @ 18VDC
• Weight: 0.2 lbs (0.8 kg)
• Size: W: 1.6" (4.0 cm) D: 3.4" (8.7 cm) H: 0.9" (2.2 cm)l
• Housing and Finish: High-impact molded Cycoloy 2950 UL 94-5VB; light gray
• Controls/Indicators: Two (2) Inputs - Two (2) insulation displacement connectors, One (1) M-Net connector
• Terminations: Plug-on connectors
