Frequently Asked Question

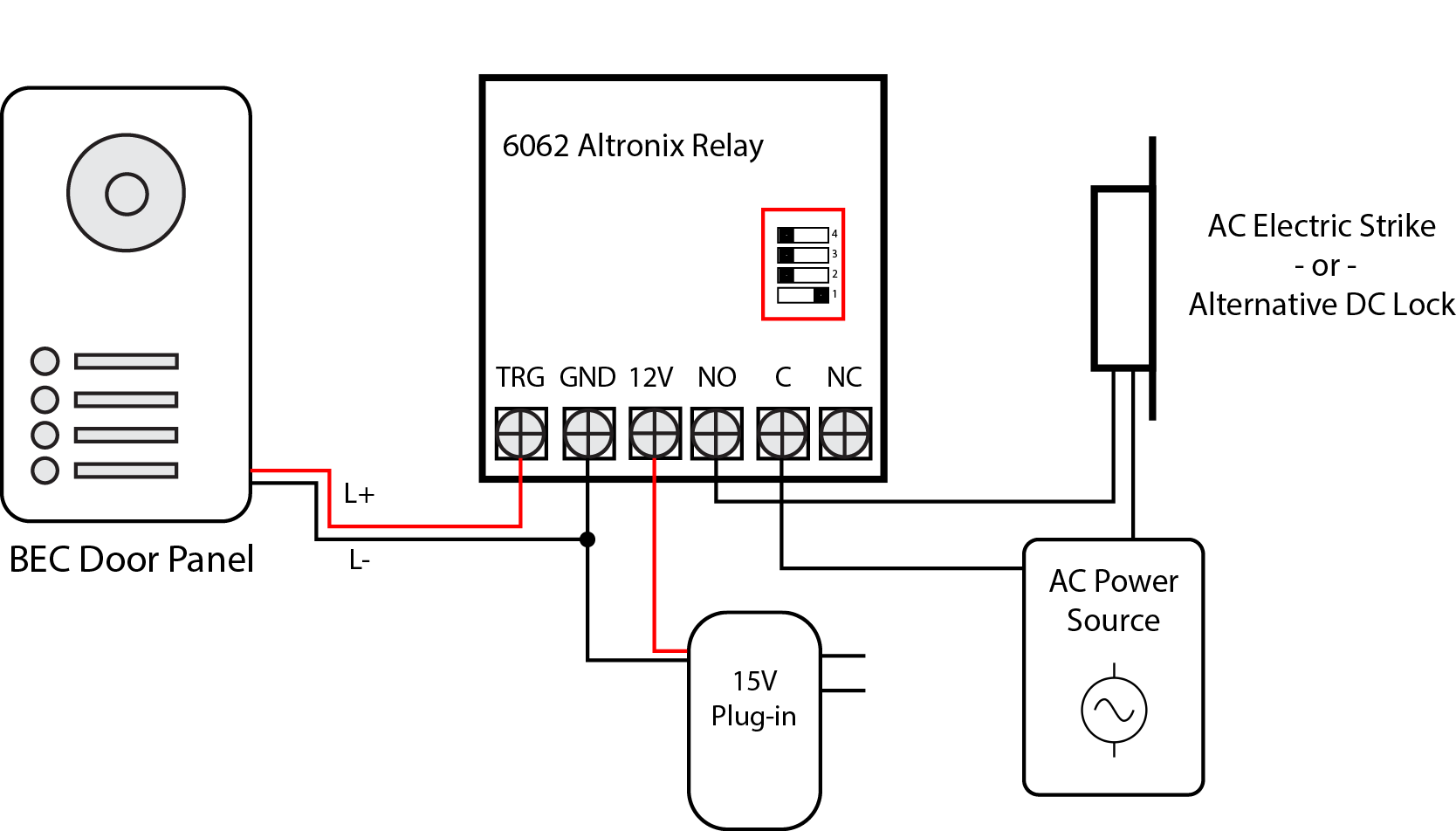

This is how you should wire the strike - you'll need your own stand-alone power source for the opener, and you should wire it through COM on the 6062 relay - the other end of the PSU should go to the lock. Essentially you're creating a circuit with the 6062, door strike, and matching power supply that will only open when the relay is triggered (through TRG & GND).
