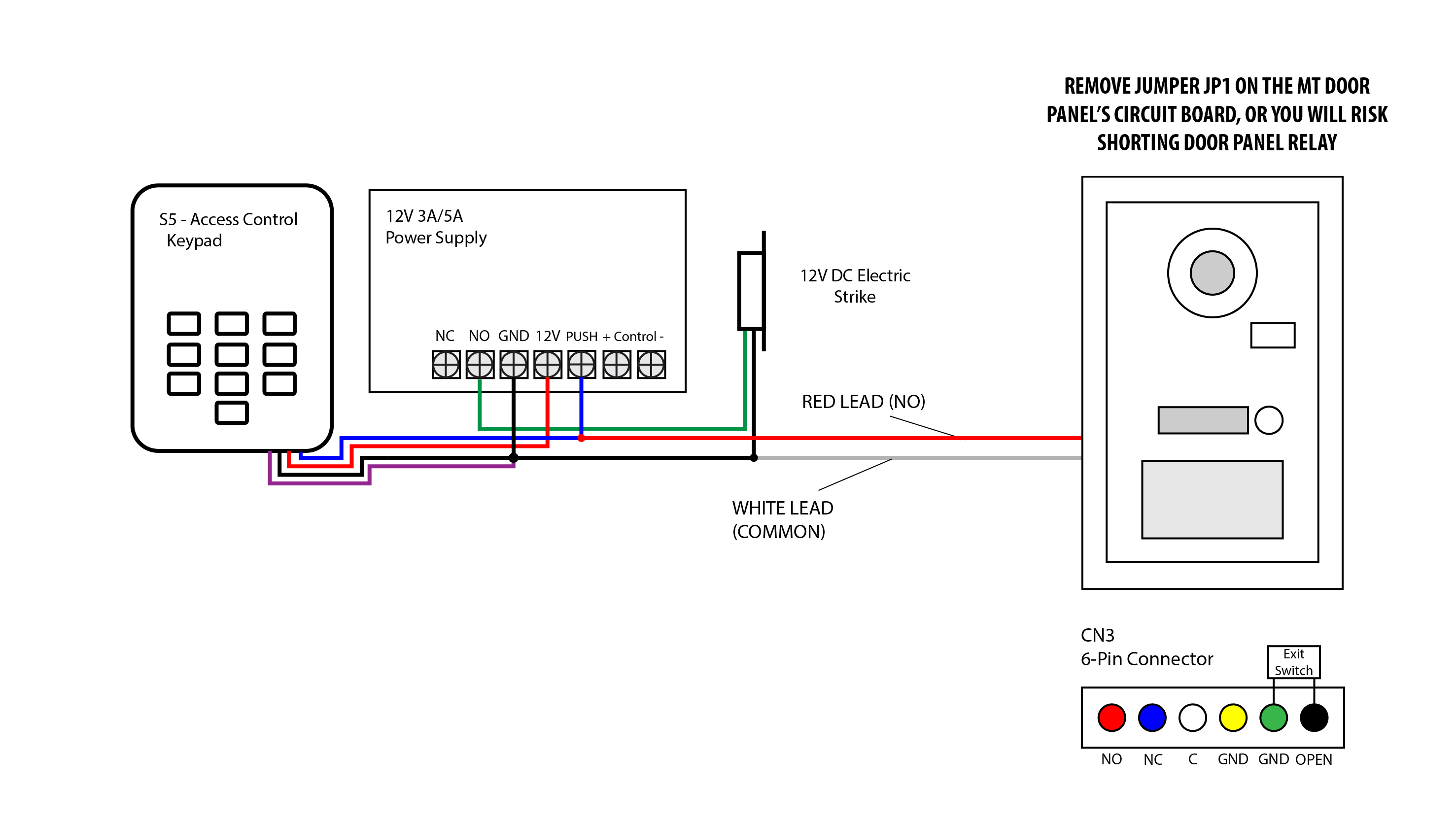

[S5] [Access Control] [Keypad] [Door Strike] [Electric Lock][MT-800 series][MT-700 series] Wiring Diagram

Last Updated 6 years ago

Based on the diagram, you are reminded to remove the jumper [JP1] off the door panel when connecting the S5 access control keypad...
